    Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable

    Ask Lasest Price
    Brand Name : TTI
    Model Number : GYXTW Fiber Optic Cable
    Certification : CE, ROHS
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, , ,
    Supply Ability : 10000 pieces
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable

    Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable

    1. Specification:

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

    The tubes are filled with a water-resistant filling compound.

    The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

    steel tape and the loose tube water-blocking material is applied to keep the cable compact

    and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

    The cable is completed with PE sheath.

    Items Specifications
    Fiber Count 2~24
    Colored Coating Fiber Dimension 250µm±15µm
    Color Blue, Orange, Green, Brown, Gray, White
    Loose Tube Dimension 2.10mm±0.05mm
    Material PBT
    Color Natural
    Strength Member Diameter 1.0mm
    Material Steel
    Outer Jacket Dimension 8.0mm±0.1mm
    Material PE
    Color Black

    2. Feature:

    Good mechanical and temperature performance

    High strength loose tube that is hydrolysis resistant

    Special tube filling compound ensure a critical protection of fiber

    Crush resistance and flexibility

    PSP enhancing moisture-proof

    Two parallel steel wires ensure tensile strength

    Small diameter, light weight and friendly installation

    Storage / Operating Temperature: -40℃~+70℃

    Outdoor GYXTW Central Loose Tube Fiber Optic Cable
    Item
    fiber
    nominal diameter (mm)
    nominal weight(kg/km)
    long-term/short-term permitted tensile (N)
    Long-term/short-term permitted crush(N)
    GYXTW-4
    2-12
    8.00
    95
    600/1500
    1000/3000
    GYXTW-6
    2-12
    8.00
    105
    1000/3000
    1000/3000
    GYXTW-8
    2-12
    8.00
    132
    600/1500
    1000/3000
    GYXTW-12
    2-12
    8.00
    148
    1000/3000
    1000/3000

    3. Application:

    • Frequent lightning area and anti electric field : The subway, tunnel
    • Long-distance communication: Local trunk network & User network
    • Duct and direct buried application
    • Harsh environment

    Items Specifications
    Fiber Count 2~24
    Colored Coating Fiber Dimension 250µm±15µm
    Color Blue, Orange, Green, Brown, Gray, White
    Loose Tube Dimension 2.10mm±0.05mm
    Material PBT
    Color Natural
    Strength Member Diameter 1.0mm
    Material Steel
    Outer Jacket Dimension 8.0mm±0.1mm
    Material PE
    Color Black

    Mechanical and Environmental Characteristics

    Items Unite Specifications
    Tensio (Long Term) N 600
    Tension (Short Term) N 1500
    Crush (Long Term) N/10cm 300
    Crush (Short Term) N/10cm 1000
    Min. Bend Radius (Dynamic) mm 20D
    Min. Bend Radius (Static) mm 10D
    Installation Temperature -20~+60
    Operating Temperature -40~+70
    Storage Temperature -40~+70

    Technical Parameter

    Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

    Tensile Strength

    Long/Short

    Term (N)

    Crush Resistance

    Long/Short

    Term (N/100mm)

    Bending

    Radius Static/Dynamic

    (mm)

    2~12 10.6 124 1000/3000 1000/3000 10D/20D
    14~24 12.0 147 1000/3000 1000/3000 10D/20D

    Transmission Characteristics
    G.652 G.655 50/125μm 62.5/125μm

    Max Attenuation

    (dB/km) (+20℃)

    850 nm 3.0 3.3
    1300 nm 1.0 1.0
    1310 nm 0.36 0.4
    1550 nm 0.24 0.23
    Cable Cute-off Wavelength (nm) ≤1260 ≤1450

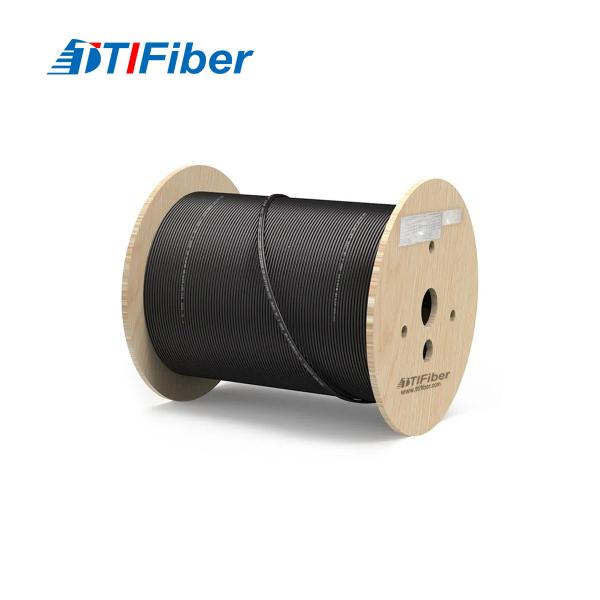

    4. Product Picture:

    Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cableFiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable

    Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable

    Quality Fiber optic cable 12core 24core 48core SM G652D Outer Diameter 7.0mm steel wire PE black sheath fiber cable for sale
