Optic Loopback Lc/Upc Or Lc/Apc Duplex Pvc 9/125 Single Mode Fiber
Optic Loopback
Features
1. Loopback cable for many test applications
2. Multimode, 50/125 or 62.5/125 fiber optic cable; Single mode,
9/125 fiber optic cable
3. SC connectors with precision ceramic ferrule for maximum optical
performance
4. Molded connector to secure connection
5 Fully tested cables to ensure superior quality and durability
6. Jacket Style: PVC or LSZH
7. Operating Wavelength: 850 nm (Multimode), 1310nm (Single mode)
8. Insertion Loss: <=0.30 dB (direct test)
9. Return Loss: >=50dB(SM), >=20 dB(MM)
10.Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit
Ethernet
Specification
Description
Fiber Loopback Module is designed to provide a media of return
patch for a fiber optic signal. Typically it is used for fiber
optic testing applications or network restorations.For the testing
applications, the loopback signal is used for diagnosing a problem.
Sending a loopback test to network equipment, one at a time, is a
technique for isolating a problem.
Fiber Loopback Module is abosolutely an economical solution for a
number of fiber optic test applications.
Application
Equipment interconnection
Loopback for network
Components testing
Specification
| Fiber type | Single-mode 9/125 | Fiber connector | LC/UPC |
| Return loss | SM≥50dB | Insertion loss | SM≤0.3dB |
| Jacket material | PVC (Yellow) | Insert-pull test | 500times, IL<0.5dB |
| Operation temperature | -20 to 70°C(-4 to 158°F) | Size | 53mm*14mm*12mm |

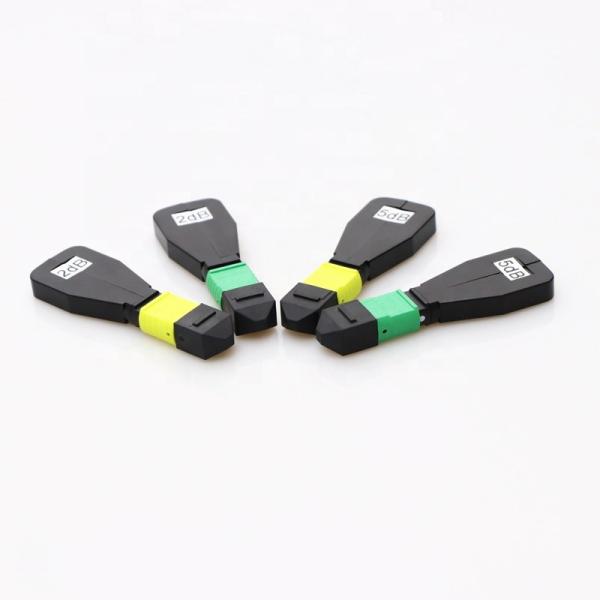

Product pictures
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity
are welcome.
- Compliance with global environmental industry with RoHS and SGS
standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
