Quick Detail:

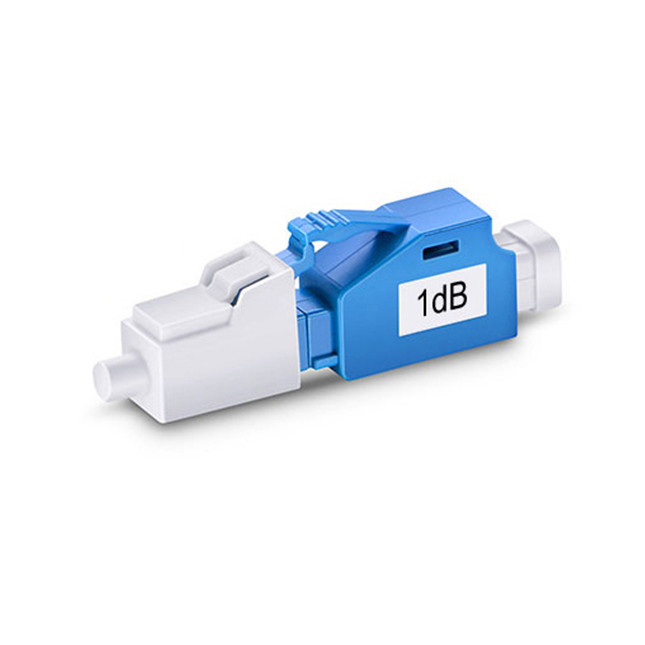

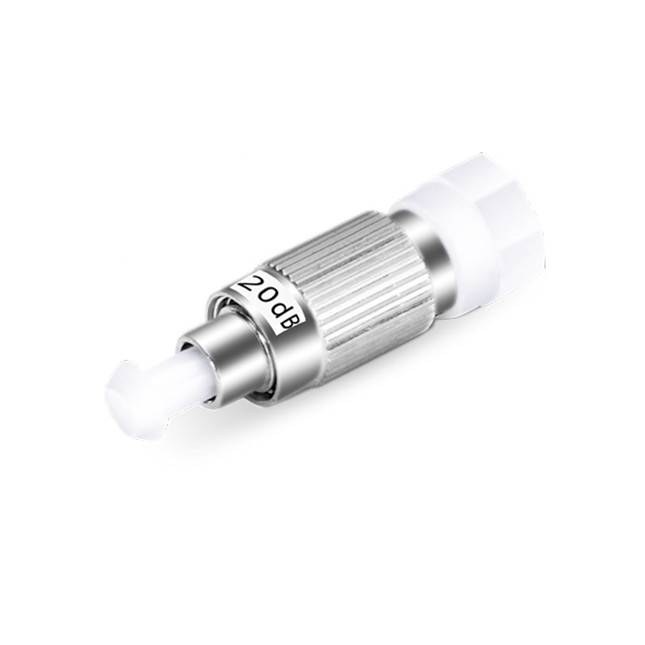

1. Name: Fixed Fiber optic attenuator
2. PC, UPC, and APC polish types optional
3. attenuation fiber inside
4. SC,LC,FC,ST,MU Optional
5. Mode: Singlemode, Multimode
6. Operating Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Description:

Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.

Features:

1. Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
2. Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
3. 100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
4. High Optical Power Endurance: up to 1000mW (=1W)
5. High Reliability: Specified for Over 500 mating

Application:

1. Fiber Optic Communication Systems
2. DWDM Equipment
3. Fiber Optic CATV
4. Optical LAN
5. Optical CATV
6. Local Area Networks
7. Optical fiber communication networks

Specification:

Ordering Information:

FC/UPC-SM-15dB-Fixed

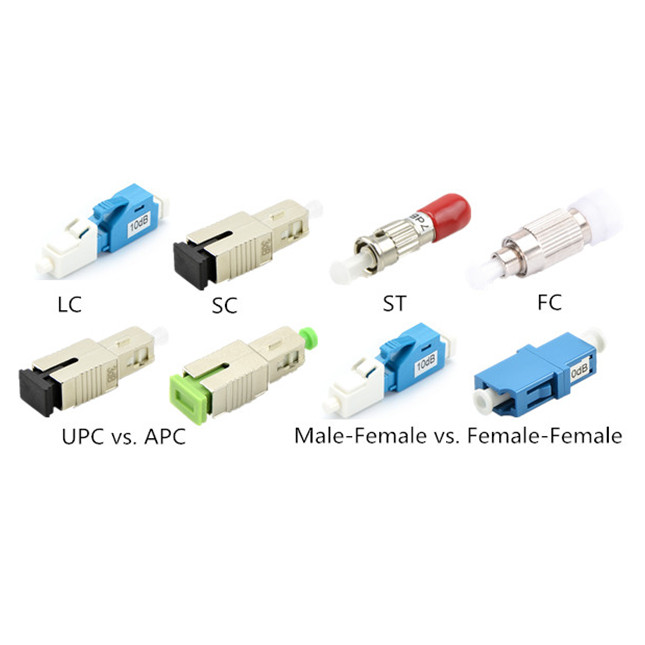

Step 1: Connector type: FC, SC, LC, ST, MU

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female&Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

1. Standard and customized OEM products from small to large quantity are welcome.
2. Compliance with global environmental industry with RoHS and SGS standards.
3. All products are 100% fully tested by our technical expertise.
4. we could add customer's logo in the label.
