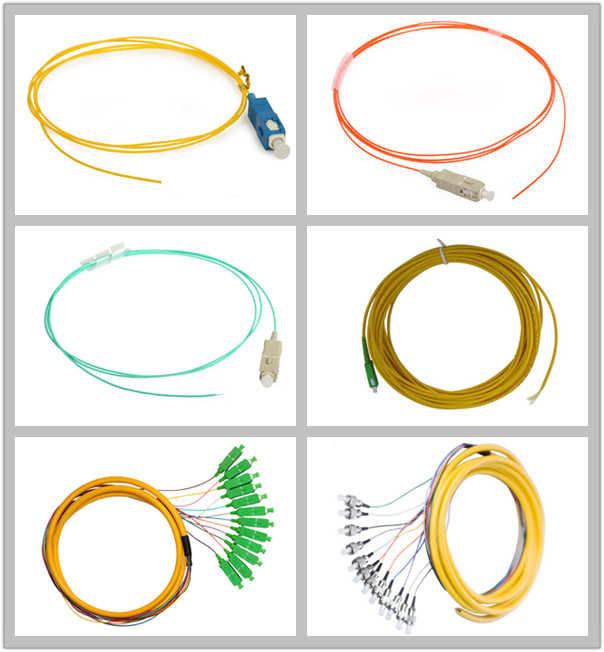

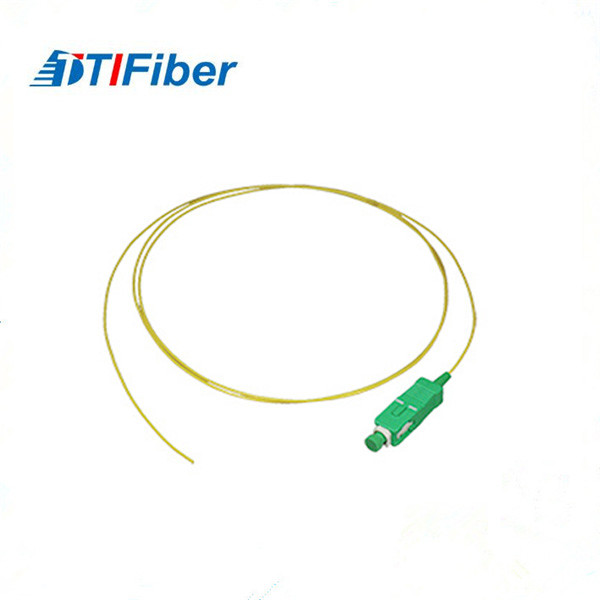

0.9mm SM G652D G657A SC/APC SC/UPC Fiber Optic Pigtail PVC/LSZH 1M/1.5M/3M

Quick Detail:

1. Cable jacket: PVC, LSZH, OFNP, OFNR
2. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
3. Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
4. Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
5. Cable length: 1m, 2m, 3m, 5m....customized
6. Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized

Description:

Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.

Features:

1. 100% test before shipment
2. Low insertion loss and high return loss
3. Custom Configurations Available at No Extra Charge
4. Available in fiber bunch, ribbon fan-out, pigtail available
5. Serialized & Individual Test Records
6. Meets ROHS and Bell core GR 326-core standards

Applications:

1. FTTH application
2. Premise installations
3. Data processing networks
4. Wide Area Networks (WANs)
5. Industrial ,mechanical and military

Specification:

Ordering Information:

Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC or APC

Step 3: Fiber Type: Single Mode(SM) or Multimode

Step 4: Cable Core: Simplex or Duplex

Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm

Step 6: Cable Length: 1, 2, 3 meter or customized

Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

1. Standard and customized OEM products from small to large quantity are welcome.
2. Compliance with global environmental industry with RoHS and SGS standards.
3. All products are 100% fully tested by our technical expertise.
4. Our patch cord warranty period is one year.

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Founded in 2013, TTI Fiber Communication Tech. Co., Ltd., is a professional manufacturer specialized in Fiber optic products for 14 years.

Our factory located in Shenzhen, China, covers an area of 12,000 square meters and has obtained ISO 9001, ISO 14001, REACH, RoHS, CE and CPR certificates and so on.

We have a wide range of fiber optic products, including Fiber Optic Cable, Fiber Optic Patch Cord, Fiber Optic Splitter, Fiber Optic Patch Panel, FTTx products, etc. We also provide professional Fiber Cabling Solutions and one-stop OEM & ODM service.

Our main markets are in North America, South America, Europe, Africa and Asia. Our reliable quality and sincere service are highly recognized by our clients all over the world.

We have cooperated with Global 500 top brands on FTTx products, and more than 30 well-known brand clients in fiber optic industry for 10 years. Our products are exported to over 100 countries.

We are committed to providing our clients with the best support, regardless of their business scale. Our expertise and knowledge of market trends, enables us provide technical support and matched solutions on fiber optic products. We are proud of providing excellent quality, competitive price and timely delivery.

Based on our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out.

Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.

TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.

We not only sell products. We are offering good service and professional support.

Choose TTI, to make your Internet Expedite!
