Indoor/Outdoor Armored fiber optical cable Anti-rat bite fiber
cable armored cable
Armoured Fiber Optic Patch Cord Manufacturer
Patch Cord Description:
Fiber optic patch cord and pigtail can connect with different types
of connectors such as ST, FC, SC, LC or MU. With the high-quality
ceramic ferrule, it has good conformity and low Insertion Loss. And
it is widely used in the Telecommunication Networks, Data
Transmission, Test Equipment and the LAN of CATV etc.
Patch Cord Technical Specs:
| Item | SM(Single Mode) | MM(Multimode) |
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 |
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 |
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 |
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 |
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 |
| Anti-tensile Force (N) | >70 |
| Temperature Range (℃) | -40~+80 |
Ordering Options:
1) Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

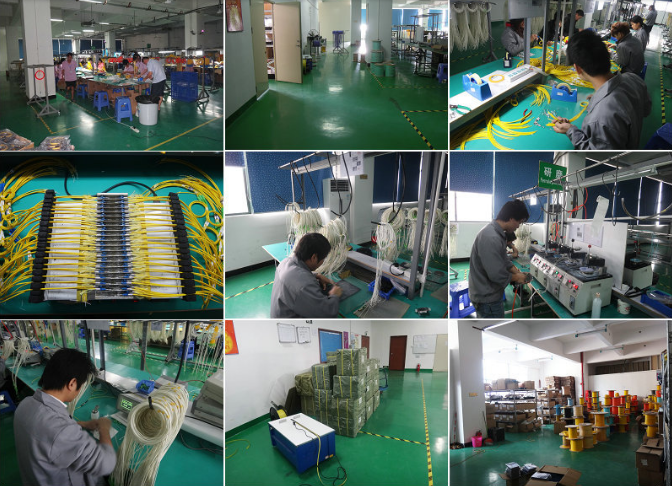

Why choose us:
1)More than 15 years experience
2)over 200 professional workers
3)Export more than 100 countries
4)at least 20,000 patchcords per day can be produced.
5)Certified with ISO9001:2008,ROHS
Relative Products:
Fiber optic patch
cord
Fiber Optic Adapter
PLC splitter
24 port ODF
Fiber optic
splice closure
Fiber media
converter
FAQ:
1,Free samples -- we can supply free products for testing
2,Brand --FOC/OEM/ODM service are acceptable
3,Quality Level --High quality as per your requirements
4,Competitive price --We have our own factory,Competitive price can
be provided
5,Payment terms --Nice payment. Like T/T, , Paypal, LC etc
6,Shipping way --By Sea,By Air or By Express(DHL,Fedex,UPS,EMS etc)
7,Delivery Time --Usually 3-5 days,Less than a week.
