Durable Single Mode Fiber Optic Patch Cable , FC To LC Patch Cord Fiber Optic

Ask Lasest Price
Brand Name :	TTI
Model Number :	FP-OM1
Certification :	ROHS, SGS, ISO9001
Price :	Negotiable
Payment Terms :	T/T, , Monthly settlement
Supply Ability :	7000pcs/Day
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

Durable Single Mode Fiber Optic Patch Cable , FC To LC Patch Cord Fiber Optic

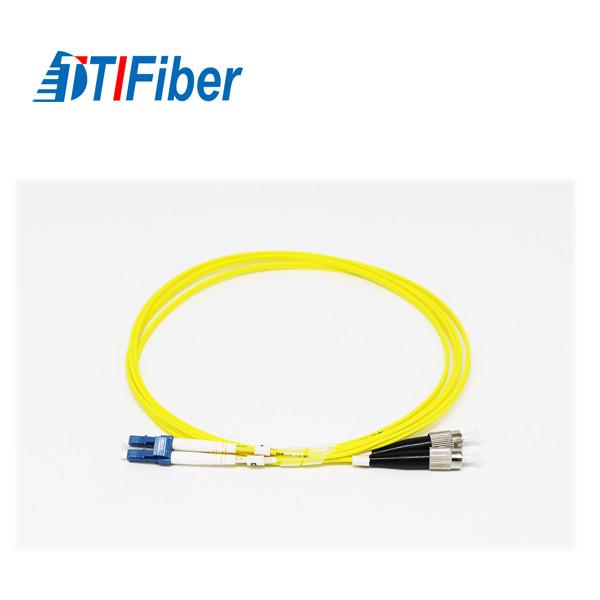

FC to LC Duplex Single Mode Fiber Optic Patch Cable - Yellow 1M

TTI offer a complete selection of LC LC fiber optic cable assemblies, these LC-LC fiber cables including single-mode and multimode types in simplex and duplex versions. Cables jacket can be Riser rated or Plenum rated, with LSZH cable and PVC options, and are all RoHS compliant cables. We supply related standard and custom made fiber optic cables with competitive prices and fast delivery.

LC part of the fiber optic cable is the compact small form factor LC fiber optic connector. It feature the RJ-45 style interface with low insertion loss and low back reflection, it is with high precision alignment and is widely used all over the world. We supply both simplex LC cable and duplex LC cable. The connector is with a 1.25mm O.D zirconia ceramic ferrule; LC fiber cable can be 9/125 single mode or 50/125 multimode or 62.5/125 multimode, PC, UPC or APC end face. It is compliant to Telcordia, EIA/TIA and IEC standards.

Features and Options

Simplex, duplex or multi fiber assemblies
Jacket types: Riser, PVC, Plenum rated, or LSZH (Low Smoke Zero Halogens) and are all RoHS cables
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single-mode, 50/125 multimode and 62.5/125 multimode
0.9mm / 1.8mm / 2.0mm / 3.0mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery

With the on-site, precision manufacturing equipment and our skilled workers, our LC/UPC to LC/UPC fiber optic patch cable are reliable and 100% tested according to industrial and international standards, these LC-LC fiber cables are with flexible customization, good prices and very prompt delivery.

Features:

Meets ROHS and Bell core GR 326-core standards
Custom Configurations Available at No Extra Charge
Available in fiber bunch, ribbon fan-out, pigtail available
FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA optional
Ferrule of end-face: PC, UPC, APC
PVC, LSZH, OFNR, OFNP fiber cable optional
Factory 100% test before shipment
Low insertion loss and high return loss
Serialized & Individual Test Records

Applications:

Suitable for fiber optic patch panel
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement

Specification:

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.2bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Ordering Information:

Step 1: Connector Type: SC, LC,ST, FC, MTRJ, MU, MPO, MTP

Step 2: Ferrule End-face: PC, UPC or APC

Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)

Step 4: Cable Core: Simplex or Duplex

Step 5: Cable Diameter: 0.9mm, 2.0mm, 3.0mm...

Step 6: Cable Length: 1, 2, 3 meter or customized

Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.
All products are 100% fully tested by our technical expertise.
Our patch cord warranty period is one year.

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)
