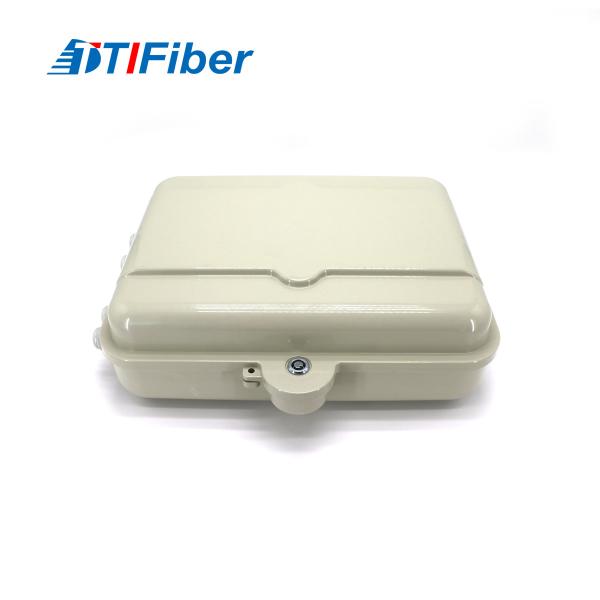

48ports FTTH fiber optic outdoor distribution box wall mount type and pole

Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 2 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Features:

High strength composite material (SMC) or engineering plastic injection molding, good mechanical performance, elegant appearance, sturdiness and durability .
Suitable for indoor and outdoor , wall-mounted, pole, aerial installation .
Splitter type: insertion splitter 1: 4/6/8/12/24/36/48 Port
Turn-over structure, layout is reasonable with splicing zone below and distribution zone above .
FC,SC,and LC adapters available, modular design, convenient for fixation and maintenance .
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm .
The mark is clear on each fiber connection and distribution .
The door opening angle is greater than 120 degree for easy operation and maintenance .
The splice tray can be taken down and put on the bench for splicing, convenient operation .
The redundant fiber is wound and protected.

Installation:Wall hanging

1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.

2 Fixed the box on the wall with M8 * 40 screws.

3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.

4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.

5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
2. Airport to Airport: by air
3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Founded in 2013, TTI Fiber Communication Tech. Co., Ltd., is a professional manufacturer specialized in Fiber optic products for 14 years.

Our factory located in Shenzhen, China, covers an area of 12,000 square meters and has obtained ISO 9001, ISO 14001, REACH, RoHS, CE and CPR certificates and so on.

We have a wide range of fiber optic products, including Fiber Optic Cable, Fiber Optic Patch Cord, Fiber Optic Splitter, Fiber Optic Patch Panel, FTTx products, etc. We also provide professional Fiber Cabling Solutions and one-stop OEM & ODM service.

Our main markets are in North America, South America, Europe, Africa and Asia. Our reliable quality and sincere service are highly recognized by our clients all over the world.

We have cooperated with Global 500 top brands on FTTx products, and more than 30 well-known brand clients in fiber optic industry for 10 years. Our products are exported to over 100 countries.

We are committed to providing our clients with the best support, regardless of their business scale. Our expertise and knowledge of market trends, enables us provide technical support and matched solutions on fiber optic products. We are proud of providing excellent quality, competitive price and timely delivery.

Based on our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out.

Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.

TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.

We not only sell products. We are offering good service and professional support.

Choose TTI, to make your Internet Expedite!
