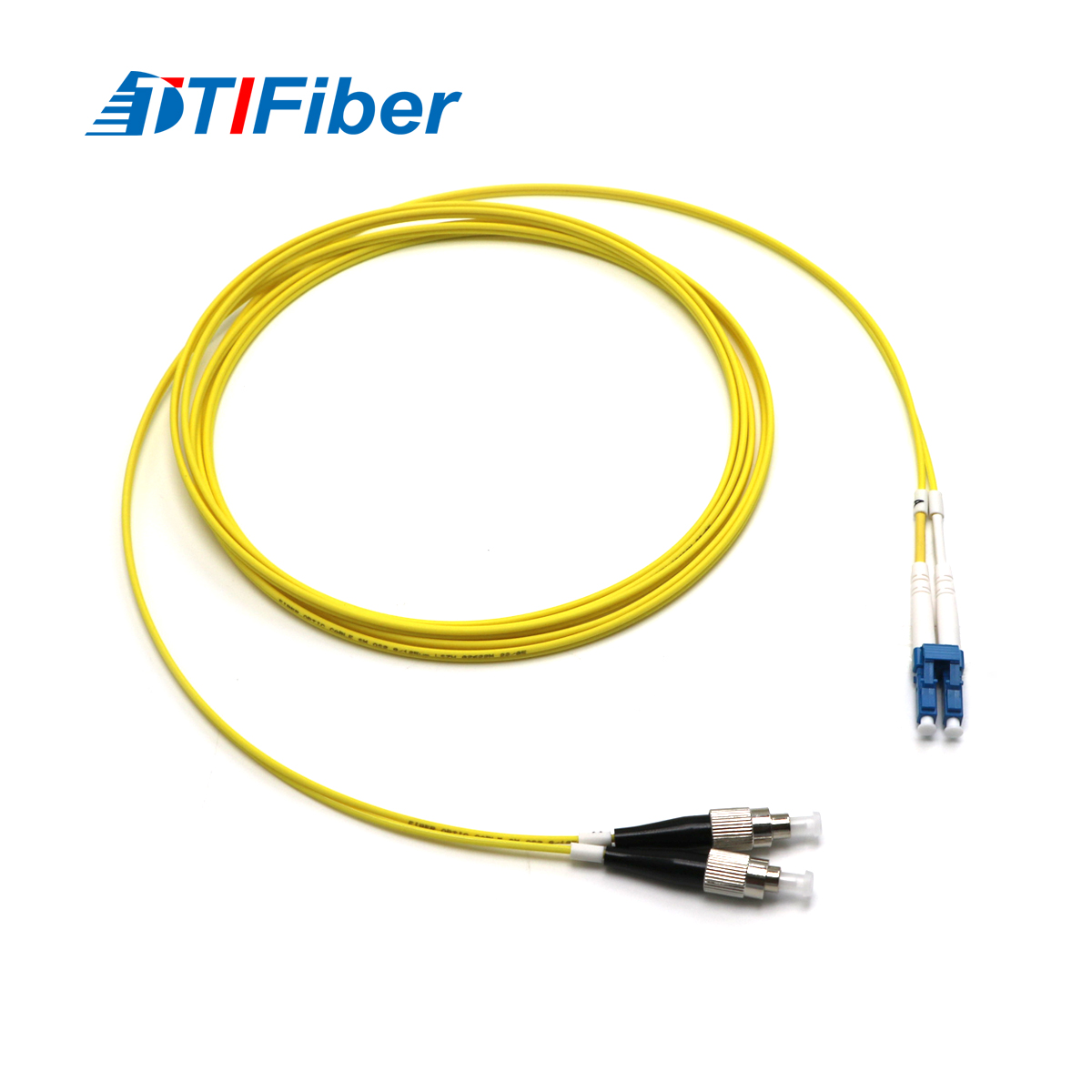

    SM Singlemode Fiber Optic Patch Cord FC/UPC -LC/UPC SM DX Fiber Optic Jumper

    Ask Lasest Price
    Brand Name : TTI
    Model Number : Fiber Optic patchcord
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pieces
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    SM Singlemode Fiber Optic Patch Cord FC/UPC -LC/UPC SM DX Fiber Optic Jumper

    SM Singlemode Fiber Optic Patch Cord FC/UPC -LC/UPC SM DX Fiber Optic Jumper


    Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.


    1. Feature


    (1)Low insertion loss and back reflection loss

    (2)Good echangeability

    (3)Good Durability

    (4)High temperature stability

    (5)Standard: Telcordia GR-326-CORE


    2. Application
    (1)FTTH, LAN, PON & Optical CATV, Local ring net

    (2)Optical fiber communication system

    (3)Optical fiber test equipment

    (4)Optical fiber sensor

    (5)Industry and military application

    3. Speciafication
    Range of ModeSingle mode
    Cable TypeSimplex, Duplex Ziocord. or Multi-cores
    Connector StyleSC, FC, ST, LC, MTRJ, MU, MPO /MTP.etc
    Polish or Ferrule Interface TypePC, UPC, APC
    Cable Diameter0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
    Outer JacketPVC /LSZH/OFNP
    Jacket ColorSM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
    Durability500 cycles(0.2 dB max increase). 1000mate/de mate cycles
    Operating Temp.-25℃ to +70℃
    Storage Temp.-40 to +85

    Order Information:


    Fiber Optic Patch Cord
    Connector TypeCeramic Ferrule
    End Face

    Cable Diameter

    (mm)

    Simplex/DuplexSingle mode
    /Multi-mode

    Length

    (M)

    FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    STPC/UPCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
    LCPC/UPCΦ0.9, Φ2Simplex/DuplexSM/MMCustomized
    MUPC/UPCΦ0.9, Φ2Simplex/DuplexSM/MMCustomized
    MTRJPC/UPCΦ0.9, Φ2DuplexSM/MMCustomized
