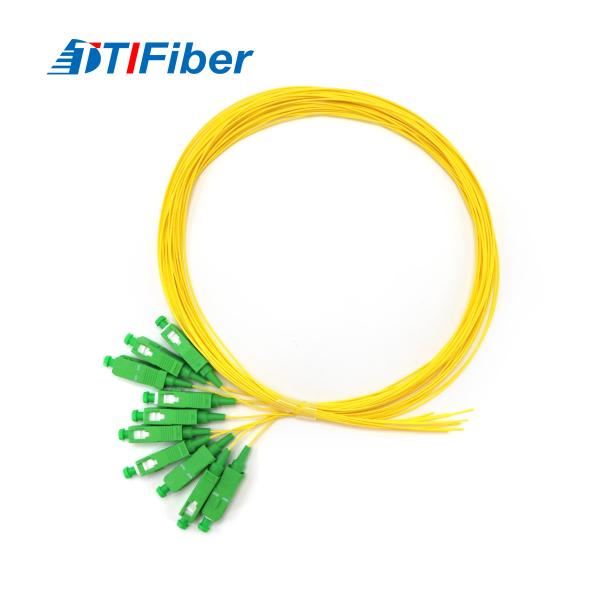

    PVC LSZH Fiber Optic Pigtails 10PCS Single Mode SC / APC 0.9MM X1.5M

    Ask Lasest Price
    Brand Name : TTI
    Model Number : SC
    Certification : CE / ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, , ,Paypal
    Supply Ability : 5000 Pieces / Day
    Delivery Time : 2-3 Days
    • Product Details
    • Company Profile

    PVC LSZH Fiber Optic Pigtails 10PCS Single Mode SC / APC 0.9MM X1.5M

    Single Mode SC/APC 0.9MM X1.5M PVC LSZH Fiber Optic Pigtails 10PCS

    Fiber Optic Pigtail

    We supply fiber optic pigtails, with very competitive prices. We offer 3 primary fiber versions including the 9/125um single mode, 62.5/125 multimode and 50um OM3 10Gb types, These fiber pigtails are with premium grade SC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are available, with different cable color, cable diameter and jacket types optional.
    Single mode Fiber Optic Pigtails:
    1) Superior qualified standard PC, APC, UPC, SPC polishing;
    2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
    3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
    4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
    5) Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;
    6) FC, SC, LC, MU, ST, MT-RJ, etc connector options
    7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
    9) Available in fiber bunch, ribbon fan-out, pigtail available;
    10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
    11) Customized specifications are welcomed.

    Fiber Optic Pigtail Applications:

    Optical access network

    Data processing networks

    Premise installations

    Telecommunication networks

    Fiber optic communication networks

    CATV, LAN, WAN, Test &Measurement


    Fiber Optic Pigtail Specification:

    ParameterSingle ModeMulti Mode
    BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
    Suitable Fiber9/125um50/125um,62.5/125um
    End-face GeometryRadius of Curvature7~25mm5~12mmN/A
    Fiber Protrusion≤50nm≤100nmN/A
    Fiber Under Cut≤100nm≤100nmN/A
    Apex offset≤50um
    MechanicalExchangeability≤0.2dB
    Salt Spray≤0.1dB
    Drop≤0.2dB(1.5M, 5 drops)
    VibrationIL ≤0.2dB(550Hz, 1.5mm)
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C
