    LC/UPC Simplex Singlemode G652D G657A Fiber Optic Pigtail

    Ask Lasest Price
    Brand Name : TTI
    Model Number : Fiber Optic Pigtail
    Certification : CE
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, , ,
    Supply Ability : 10000 pieces
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    LC/UPC Simplex Singlemode G652D G657A Fiber Optic Pigtail

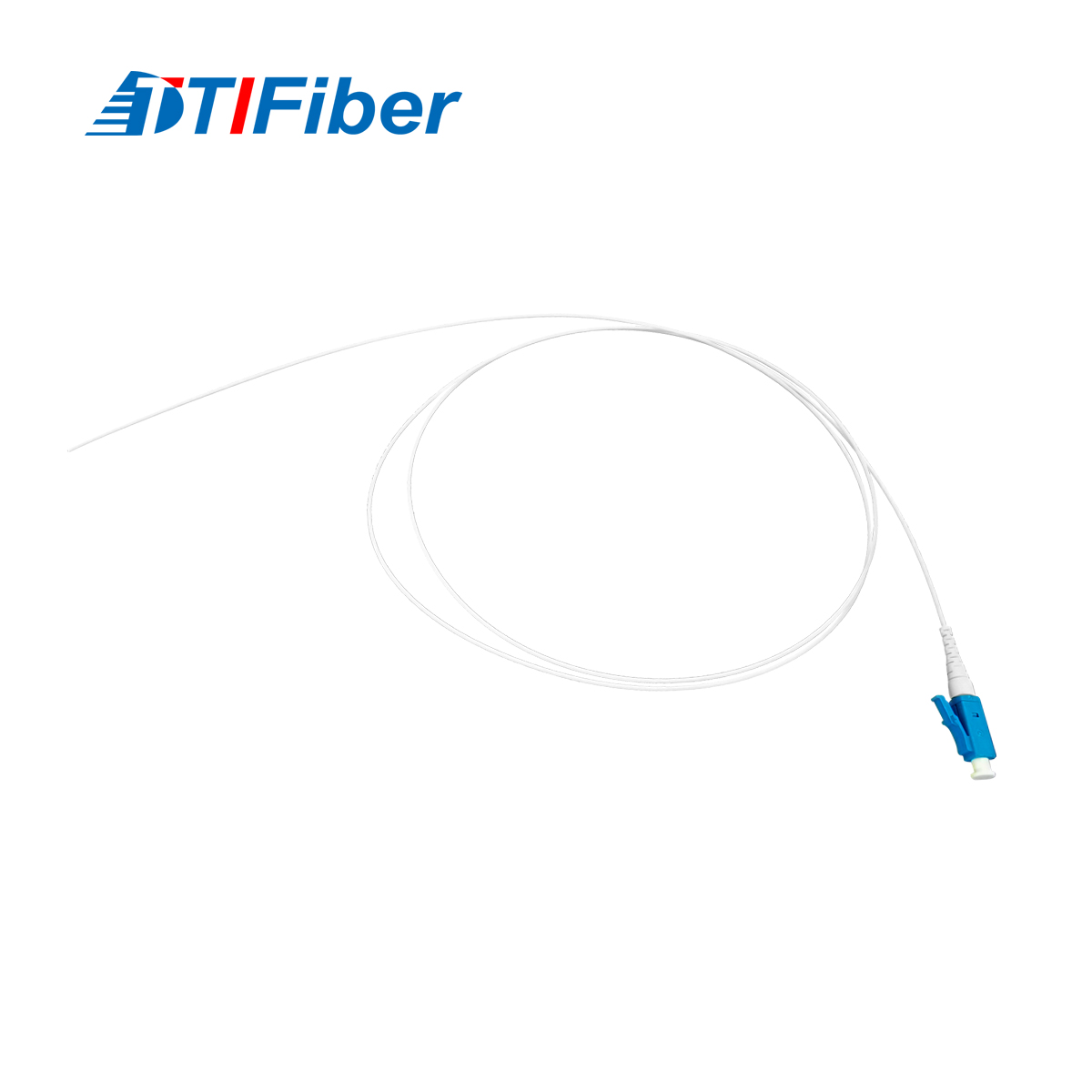

    Fiber optic pigtail LC/UPC Simplex Singlemode G652D G657A White Pigtail


    Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.

    TTI can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.

    1. Feature


    (1) Low insertion loss and back reflection loss

    (2) Good echangeability

    (3) Good Durability

    (4) High temperature stability

    (5) Standard: Telcordia GR-326-CORE


    2. Application
    (1) FTTH, LAN, PON & Optical CATV, Local ring net

    (2) Optical fiber communication system

    (3) Optical fiber test equipment

    (4) Optical fiber sensor

    (5) Industry and military application

    3. Speciafication
    Insertion loss
    Singlemode
    PC≤ 0.3dB
    UPC≤ 0.2dB
    APC ≤ 0.18dB
    Multimode
    PC≤ 0.5dB
    UPC≤ 0.3dB
    APC ≤ 0.3dB
    Return loss
    Singlemode
    PC≥ 48dB
    UPC≥ 50dB
    APC ≥ 60dB
    Multimode
    PC≥ 25dB
    UPC≥ 45dB
    APC ≥ 50dB
    Reaptability
    ≤ 0.1db
    Changeability
    ≤ 0.2dB
    Working temperature
    -40 to +80° C
    Durability
    1000 times
    Sustain tension
    ≥ 100N
    Fiber
    9/125um , 50/125um, 62.5/125um, etc.
    Diameter
    0.9mm 2.0mm 3.0mm, etc.
    Cable material
    PVC, LSZH
    Cores
    Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc.

    4. Product Details



    5. FAQ:


    1. Why choose TTI FIBER ?
    (1) Professional manufacturer: Low MOQ, free samples are available.
    (2) Quality assurance:Stable high quality.
    (3) Customers solutions:Quick.
    (4) Win-Win Price:Save much costs, bring more benefits for customers.

    2. Do you accept OEM,ODM?
    Yes, we accept them .

    3. Can you print our LOGO?
    Sure, Your LOGO can be printed on the boxes , or products.

    4. What's the method of shipment?
    We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

    5. What's the Payment?
    We accept all online payments .
