GYFTC8S FRP SM G652D Aerial Figure 8 Fiber Optic Underground Cable 2 - 144 Core

GYFTC8S FRP SM G652D Aerial Figure 2-144 Core Fiber Optic Underground Cable

1. Specification:

The GYFTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around FRP central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

	G652D	G655	50/125μm	62.5/125μm
Attenuation(+20deg C)	@850nm			≤ 3.0dB/KM	≤ 3.0 dB/KM
	@1300nm			≤ 1.0dB/KM	≤ 1.0 dB/KM
	@1310nm	≤ 0.36 dB/KM	--
	@1550nm	≤ 0.22 dB/KM	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥ 500 MHz-KM	≥200 MHz-KM
Bandwidth(Class A)	@1300nm			≥1000 MHz-KM	≥600 MHz-KM
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

2. Feature:

Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Model	Fiber count	Tube count	Filling rope count	Weight (kg/km)	Tension (N)	Crush (N/100mm)	Bending Radius Static / dynamic (mm)
GYTC8A-2~6	2~6	1	4	158	According to the diameter of suspension wire	300/1000	10D/20D
GYTC8A-8~12	8~12	2	3	158
GYTC8A-14~18	14~18	3	2	158
GYTC8A-20~24	20~24	4	1	158
GYTC8A-26~30	26~30	5	0	158

Fiber Type	Fiber attenuation(+20℃)				Band Width		Numerical aperture	Cut-off wavelength of optic fiber cable
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cut-off wavelength of optic fiber cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

3. Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

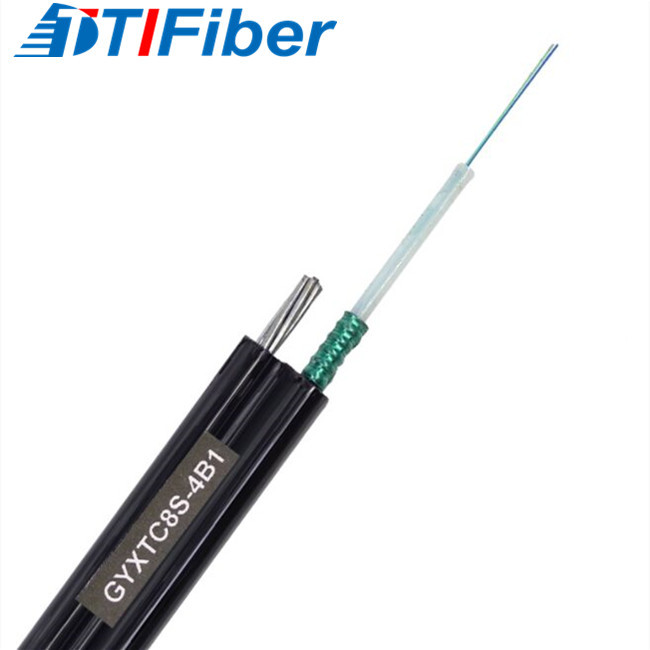

4. Product Picture:

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
