    ADSS Double Sheath Fiber Optical Cable 24 Core 48 Core 96 Core

    Ask Lasest Price
    Brand Name : TTI
    Model Number : ADSS Fiber Optic Cable
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pieces
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

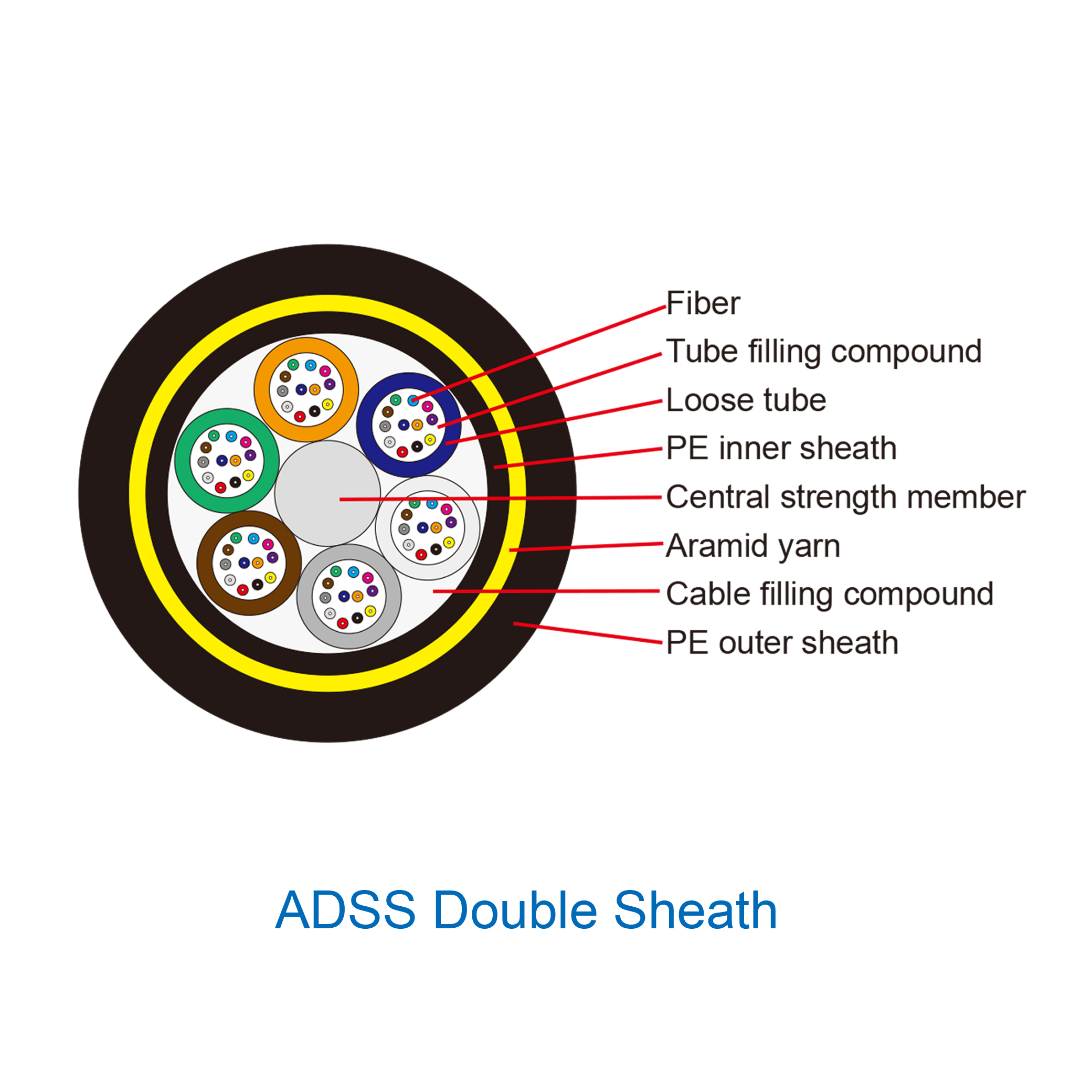

    ADSS Double Sheath Fiber Optical Cable 24 Core 48 Core 96 Core

    ADSS Double Sheath Fiber Optical Cable 24 Core 48 Core 96 Core

    ADSS Double Sheath 24core 48core 96core 100-200m Span Fiber Optical Cable

    1. Specification:

    Fiber:2-288 fibersUni-loose tube gel-filled
    Central Strength Member:Fiberglass reinforced plastic (FRP)
    Inner Jacket:Black UV and waterproof polyethylene (PE).
    Strength Member:Dupon Kevlar Yarn
    Outer Jacket: Black UV and waterproof polyethylene (PE).
    Span: 80m to 500m
    Features:Can be installed without shutting off the power.
    * Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
    * Good performance of tensile strength and temperature.
    * The design life span is over 30 years.

    Fiber
    2-288 fibers Uni-loose tube gel-filled
    Central Strength Member
    Fiberglass reinforced plastic (FRP)
    Inner Jacket
    Black UV and waterproof polyethylene (PE)
    Strength Member
    Dupon Kevlar Yarn
    Outer Jacket
    Black UV and waterproof polyethylene (PE).
    Applications
    Aerial

    Parameter
    Specification
    Fiber Count
    12
    24
    36
    48
    96
    144
    Cable Strcture
    6
    6
    6
    6
    8
    12
    Fiber No.per Tube
    6
    6
    6
    12
    12
    12
    Loose Tube Number
    2
    4
    6
    4
    8
    12
    Loose Tube Material
    PBT
    Water-blocking Material
    Fiber Jelly
    Central Strength Member Material
    FRP rod (coated with PE if nedded)
    Central Strength Member Size
    2.2mm
    2.2mm
    2.2mm
    2.5mm
    2.5mm
    2.5mm
    Ripcord Quantity
    2
    2
    2
    2
    2
    2
    Sheath Material
    HDPE,Black
    Sheath Nom Thickness
    1.6mm
    1.6mm
    1.6mm
    1.6mm
    1.6mm
    1.6mm
    Overal Diameter (±0.2)
    10.3mm
    10.4mm
    10.4mm
    11mm
    12.3mm
    14.9mm
    Cable Weight/Kg
    79
    81
    81
    93
    115
    169
    MAT (N)
    4000
    4000
    4000
    4800
    4800
    4800
    RTS (N)
    1000
    1000
    1000
    12000
    12000
    12000
    Crush Risistance (N/100mm) short term
    2000
    2000
    2000
    2000
    2000
    2000
    Crush Risistance (N/100mm) Long term
    600
    600
    600
    600
    600
    600
    Min. Bending Radius (mm) Static
    10D
    10D
    10D
    10D
    10D
    10D
    Min. Bending Radius (mm) Dynamic
    20D
    20D
    20D
    20D
    20D
    20D
    Operation Temperature
    -30 ~ + 70℃


    2. Feature

    * All dielectric non-material strength member.

    * Special gel in the tube offers critical protection for the fibers.

    * FRP central strength members and filling compound of aramid yarn from Dupont.

    * Excellent AT performance * Good stability performance with high and low temperatures and anti-aging.

    * It’s light weight and small diameter reduce loading on towers from ice and wind.

    Fiber Type Fiber attenuation(+20℃) Band Width Numerical aperture Cut-off wavelength of optic fiber cable
    @850nm @1300nm @1310nm @1550nm @850nm @1300nm
    G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
    G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
    50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
    62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---

    3. Application:

    • Frequent lightning area and anti electric field : The subway, tunnel
    • Long-distance communication: Local trunk network & User network
    • Duct and direct buried application
    • Harsh environment

    4. Product Picture:

    ADSS Double Sheath Fiber Optical Cable 24 Core 48 Core 96 Core

    ADSS Double Sheath Fiber Optical Cable 24 Core 48 Core 96 Core

    5. FAQ:

    1. Why choose TTI FIBER ?
    (1)Professional manufacturer: Low MOQ, free samples are available.
    (2)Quality assurance:Stable high quality.
    (3)Customers solutions:Quick.
    (4)Win-Win Price:Save much costs, bring more benefits for customers.


    2. Do you accept OEM,ODM?
    Yes, we accept them .


    3. Can you print our LOGO?
    Sure, Your LOGO can be printed on the boxes , or products.


    4. What's the method of shipment?
    We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


    5. What's the Payment?
    We accept all online payments.
