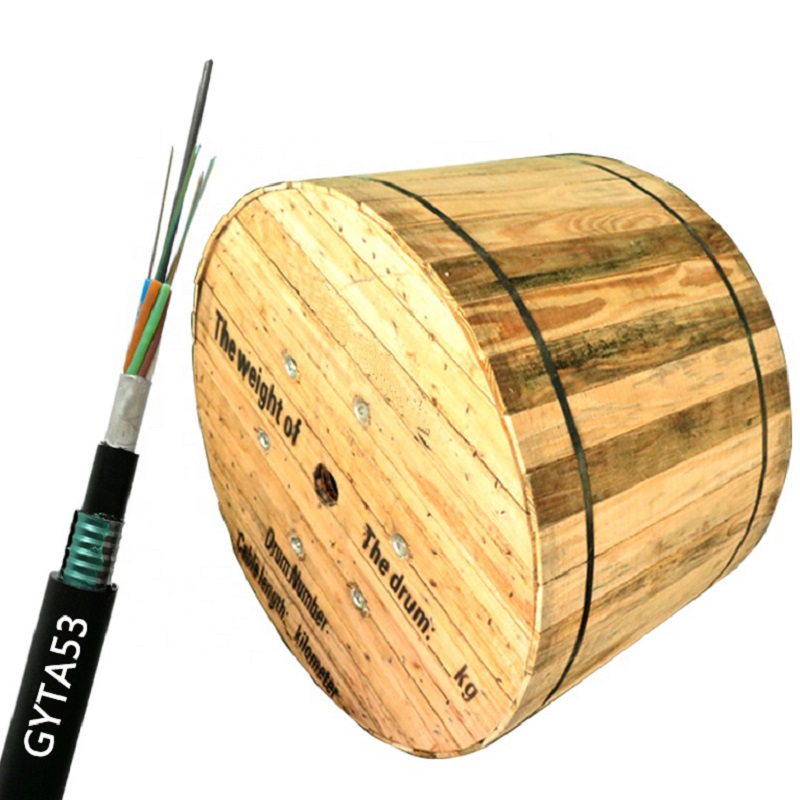

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Ask Lasest Price
    Brand Name : TTIFIBER
    Model Number : GYTA53
    Certification : ISO9001, ROHS, CE, CE and ROHS, ISO9001/CE/ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000KM/M
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    1. Product Description:

    The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

    2. Features:

    - Good mechanical and temperature performance

    - High strength loose tube that is hydrolysis resistant

    - Special tube filling compound ensure a critical protection of fiber

    - Crush resistance and flexibility

    - The following measures are taken to ensure the cable watertight

    - Steel wire used as the central strength member

    - Loose tube filling compound

    - 100% cable core filling

    - APL moisture barrier

    - PSP enhancing moisture-proof

    - Water-blocking material

    3. Product Display:

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    Gyta53 Fiber Optic Cable Underground Direct Buried Duct Ftth Drop Cable

    4. Technical data:

    Fiber Num. Outer diameter (mm) Weight (kg/km) Tension (N) Crash loading (N/100mm)
    Short term Long term Short term Long term
    2-30 12.9 160 3000 1000 3000 1000
    32-60 13.4 175
    62-72 14.1 204
    74-84 15.4 245
    86-96 15.4 245
    98-120 17.2 285
    122-144 19 334

    5. Performance:

    Application: Used for long haul communication and local network

    Installation method: burial and duct

    Operating temperature: -40°C ~ +70°C

    Permisson bent radius Static: 12.5 times O.D.

    Dynamic: 25 times O.D.

    No. of cable
    12
    24
    48
    Fiber Model
    G.652D
    Design
    (StrengthMember+Tube&Filler)
    1+5
    Central Strength Member
    Material
    Steel Wire
    Diameter(±0.5)mm
    1.4
    Loose Tube
    Material
    PBT
    Diameter(±0.06)mm
    1.72
    1.72
    2.0
    Thickness(±0.03)mm
    0.30
    0.30
    0.32
    The Max.Core NO./Tube
    6
    6
    12
    Filler Rope
    Material
    LDPE
    Diameter(±0.06)mm
    1.7
    1.7
    2.0
    NO.
    3
    1
    1
    Moisture Barrier
    Material
    Polymer Coated Aluminum Tape
    Thickness(±0.03)mm
    0.20
    Inner
    Sheath
    Material
    MDPE
    Thickness(±0.2)mm
    0.9
    Armoring
    Material
    Polymer Coated Steel Tape
    Thickness(±0.2)mm
    0.22
    Water Bloaking Layer
    Material
    Filling Compound
    Outer Sheath
    Material
    MDPE
    Thickness(±0.2)mm
    1.8
    Cable Diameter(±0.5)mm
    12.5
    12.5
    13.1
    Cable Weight(±10)kg/km
    152
    167
    167
    Attenuation
    1310nm
    0.35dB/ km
    1550nm
    0.21dB/ km
    Min. bending radius
    Without Tension
    12.5×Cable-φ
    Under Maximum Tension
    25.0×Cable-φ
    Temperature range
    (℃)
    Installation
    -20~+60
    Transport&Storage
    -40~+70
    Operation
    -40~+70

    6. Certification Display:
