    Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing

    Ask Lasest Price
    Brand Name : TTI Fiber
    Model Number : FOA-SC-OM3
    Certification : ISO 9001, ISO 14001, REACH, ROHS, CE and CPR certificates
    Payment Terms : T/T, , PayPal, Monthly
    Supply Ability : 10000pcs/day
    Delivery Time : 2-3 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing

    Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing


    Description:

    • Bare Fiber Optic Adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. Bare fiber adapter are used as the medium to link the bare optical fiber to fiber optic equipment.
    • It’s a very convenient way to connect unterminated fibers with standard FC, SC, ST, LC receptacles.
    • You can simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps.
    • There are various types available: SC, FC, ST, SMA, LC, and so on. Both single mode and multimode types are available.

    Features:

    • Good inerchangeability
    • Environmentally Stable and Reliable
    • Accurate Size
    • Excellent Return Loss
    • Applicable standard: IEC 61754-13
    • Complete Hybrid adapter

    Technical:

    • Insertion Loss ≤0.2dB
    • Retentiveness 200-600g
    • Mating Durability1000 times≤ 0.2dB
    • Exchangeability: ≤ 0.2dB
    • Salt Spray: ≤ 0.2dB
    • Sleeve material: ceramic / metal
    • Temperature Rang -40 to +85°C

    Applications:

    • Local Area Networks
    • CATV System
    • Telecommunication Networks
    • Equipment Test

    Specification:


    Parameter

    Unit

    LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU

    MTRJ


    SM

    MM

    SM

    MM

    SM

    PC

    UPC

    APC

    PC

    PC

    UPC

    PC

    PC

    APC

    Insertion Loss (Typical)

    dB

    ≤0.3

    ≤0.2

    ≤0.3

    ≤0.2

    ≤0.3

    ≤0.2

    ≤0.2

    ≤0.3

    ≤0.3

    Return Loss

    dB

    ≥45

    ≥50

    ≥60

    ≥30

    ≥45

    ≥50

    ≥35

    ≥55

    ≥75

    Exchangeability

    dB

    ≤0.2

    ≤0.2

    ≤0.2

    Repeatability

    dB

    ≤0.2

    ≤0.2

    ≤0.2

    Durability

    Time

    >1000

    >1000

    >1000

    Operating Temperature

    °C

    -40~75

    -40~75

    -40~75

    Storage Temperature

    °C

    -45~85

    -45~85

    -45~85

    Plug and Unplug force (g/f)

    200—600

    Spec

    Simplex and Duplex

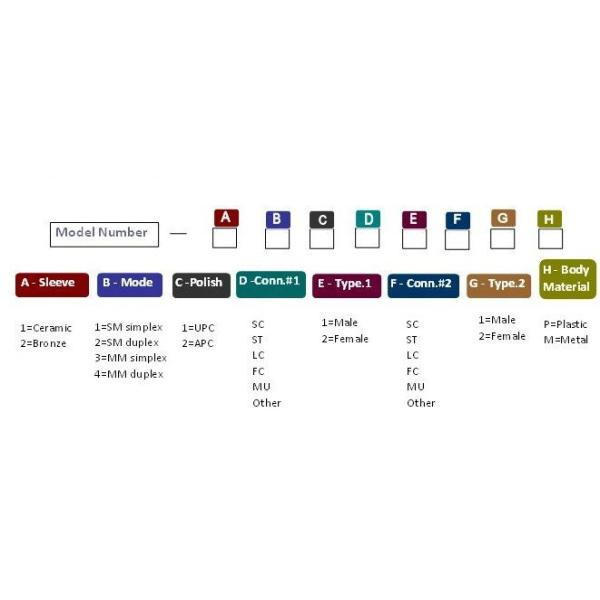

    Adapter order information:

    SC Bare Fiber Optic Adapter


    Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing
