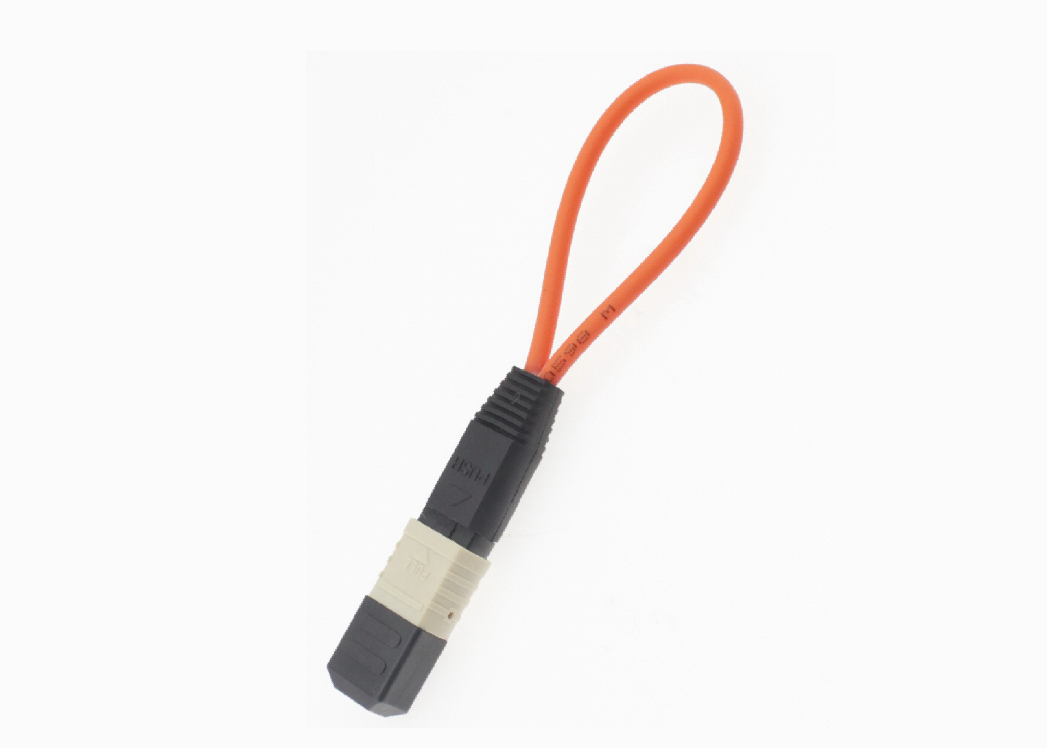

    mechanical SM MM MPO fiber optic loopback plug with Low Insertion Loss

    Ask Lasest Price
    Brand Name : TTI
    Certification : ROHS, SGS
    Delivery Time : 2-3 days
    Payment Terms : T/T, , Monthly settlement
    Supply Ability : 7000pcs/Day
    Price : Negotiable
    • Product Details
    • Company Profile

    mechanical SM MM MPO fiber optic loopback plug with Low Insertion Loss


    mechanical SM MM MPO fiber optic loopback plug with Low Insertion Loss


    Description:


    Fiber optic loopback one connector is plugged into the output port, while the other is plugged into the input port of the equipment.


    Quick Detail:

    1. Name: MPO Loopback
    2. Mode: SM MM OM3 OM4
    3. Connector: LC, SC, MTRJ, MPO
    4. Mode: Singlemode and Multimode
    5. Fiber end-face: UPC, APC
    6. Fiber brand: YOFC, Corning

    Features:

    1. Short wavelength devices
    2. Molded connector to secure connection
    3. Fully tested cables to ensure superior quality and durability
    4. Loop back cable for many test applications

    Applications:

    1. FTTH application
    2. Premise installations
    3. Data processing networks
    4. Wide Area Networks (WANs)
    5. Industrial ,mechanical and military

    Specification:


    Optical PerformanceSingle ModeMulti Mode
    Insertion Loss≤0.350dB≤0.35dB
    Return Loss≥45dB(PC)≥35dB
    ≥50dB(UPC)
    ≥60dB(APC)
    Repeatability≤0.10dB
    Durability≤0.2dB typical change,1000 matings
    Operating Temperature- 20 ~ +75°C
    Storage Temperature- 40 ~ +85°C

    Ordering Information:


    Step 1: Connector Type: SC, LC, MTRJ, MPO

    Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm

    Step 3: Ferrule End-face: UPC, APC

    Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)

    Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua


    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

    Our service:

    1. Standard and customized OEM products from small to large quantity are welcome.
    2. Compliance with global environmental industry with ROHS and SGS standards.
    3. All products are 100% fully tested by our technical expertise before shipping.
    4. We provide fiber optic loopbacks according to industry standard.
