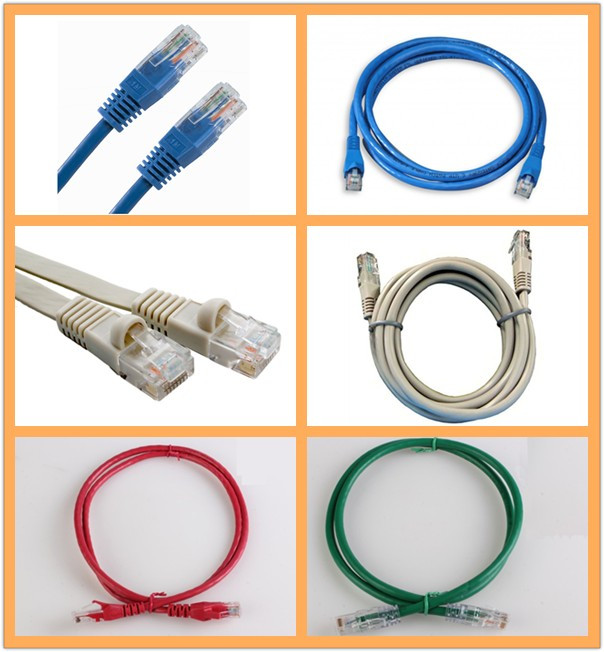

solid bare copper UTP Cat6 LAN Network Cable for Stranded conductor

Quick Detail:

1. Pairs twisted by 2 insulated wire
2. Polyester wrapping tape, PE jacket
3. Jacket: PVC and LSZH
4. 250/550MHz ATM 155, 100Mbps TPDDI, fast Ethernet
5. OEM serves custom for your requirement
6. Conductor: solid bare copper/CCS/CCA
7. AWG: 23/24
8. Insulation: foam PE/solid PE
9. Braiding: 64/96/112/128
10. Jacket: PVC/LSZH

Specification:

• Conductor:
  1. Material: solid bare copper
  2. Number of pairs: 4 pairs
  3. AWG: 23
  4. Conductor diameter: 0.57 ±0.003mm

• Insulation:
  1. Materials: HDPE and FRPE
  2. Diameter: 1.02 ±0.005mm
  3. Average thickness: 0.225mm
  4. Minimum point thickness: 0.2245mm

• Jacket:
  1. Materials: PVC or LSOH
  2. Nominal diameter: 6.0 ±0.2mm
  3. Average thickness: 0.55mm
  4. Minimum point thickness: 0.545mm

• Electrical characteristics: cat6 network cables
  1. Impedance: 100 ±15Ω
  2. Return resistance: 9.4/100mΩ
  3. Unbalance resistance: 5% (maximum)
  4. Static electric capacity: 73.2pF/100m
  5. Communicate rate: 65%
  6. Operating temperature: -20 to 75°C
  7. Minimum bend radius (install): (OD) 8mm
• Flame test: CMX, CM, CMR and IEC60332-1
• Reference standards: TIA/EIA568B and IEC
• Compliance: ETL verified ANSI TIA/EIA568-2, UL subject 444 (UL) c (UL) type CMR/CMG
• Type CM/CMH, NEC article 800 type CMP or CM
• Includes: cat6 network cables
  1. BC conductor
  2. PE insulation
  3. Overall Mylar shield
  4. TC braid shield
  5. Rid cord
  6. PVC sheath
• Available in various color jackets
• Used for 100Base-TX, 100VG-any LAN, 1000Base-T, ATM, noisy environment
• Certifications: CE
• RoHS Directive-compliant
• Core colors:
  1. Pair 1: blue-white/blue
  2. Pair 2: orange-white/orange
  3. Pair 3: green-white/orange
  4. Pair 4: brown-white/brown

Application:

1. Pots T1 and T1 fractional, ISDN basics and primary rates
2. 4/16Mbps token ring (IEEE 802.5) 10Base-T (IEEE 802.5)
3. 100Mbps TP-PMD.52/155Mbps ATM (ATM forum)
4. 100Base-T4 (fast Ethernet)
5. 100VG-anyLAN (IEEE 802.12)
6. 100Base-T (fast Ethernet)
7. 1Gbps Ethernet (IEEE 802.3)

Standard compliance:

1. All proposed category 6 requirements as per ANSI/TIA/EIA, IEC and CENELEC EN standards
2. ANSI/TIA/EIA 568-B.2-1 Cat6
3. IEC 11801 class E 2nd edition
4. CENELEC EN 61156-6
5. CENELEC EN 50173-1
6. CENELEC EN 50288-5-1 and CENELEC EN 50288-5-2
7. Flame retardant is verified according to IEC 60332-1-2

Package: wooden roller
