    2.0mm Fiber Optic Patch Cord Singlemode Fiber Optic Jumper LC SC ST FC

    Ask Lasest Price
    Brand Name : TTI or OEM
    Model Number : LC-LC
    Certification : CE,ISO9001, FCC,ROHS
    Delivery Time : 3-5 workign days
    Price : Negotiable
    • Product Details
    • Company Profile

    2.0mm Fiber Optic Patch Cord Singlemode Fiber Optic Jumper LC SC ST FC

    2.0mm Fiber Optic Patch Cord Singlemode Fiber Optic Jumper LC SC ST FC



    Description:
    Fiber Patch Cord
    > SPC(Super Physical Contact),UPC (Ultra Physical Contact) or APC(Angled Physical Contact)
    > Fiber type: G652D
    > Simplex or duplex version
    > Standard color yellow,other available upon request

    Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC

    Our Advantage:
    Manufacturer
    Zero-Defects QA Program
    Advanced Equipment & Tooling
    100% Product Testing
    100% Product Guarantee
    Fast Turn Around
    Same-Day Manufacturing Available


    Specification:

    ParameterSingle ModeMulti Mode
    BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
    Suitable Fiber9/125um50/125um,62.5/125um
    End-face GeometryRadius of Curvature7~25mm5~12mmN/A
    Fiber Protrusion≤50nm≤100nmN/A
    Fiber Under Cut≤100nm≤100nmN/A
    Apex offset≤50um
    MechanicalExchangeability≤0.2dB
    Salt Spray≤0.1dB
    Drop≤0.2dB(1.5M, 5 drops)
    VibrationIL ≤0.2dB(550Hz, 1.5mm)
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

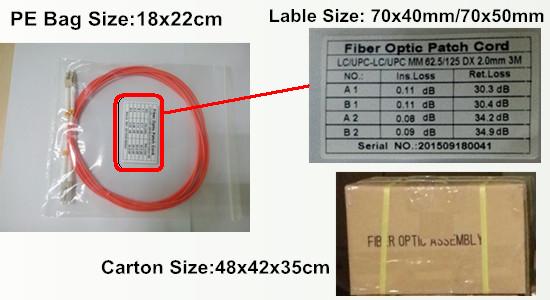

    Packing: 1pc/PE Bag, 20pcs/Bigger PE bag, 200-300pcs/Carton
