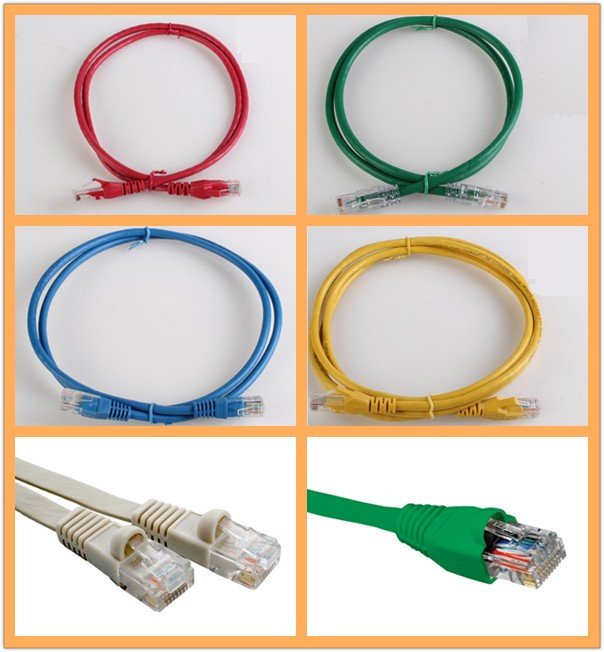

indoor installation Cat5e UTP 26AWG Network Patch Cord with PVC Jacket , Blue

Quick Detail:

1. Length: 0.3m-30m or As per requested
2. Color: Grey/Green/Blue/White/Black/Red/Yellow
3. Package: PE bag or Blister Package
4. Type:Unshielded RJ45 8P8C Modular Plug
5. Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
6. IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area

Features:

1. TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
2. Fire protection – IEC60332-1 (CM)
3. Application: Horizontal communication cable; for indoor installation

Wiring Scheme:

1. ANSI/TIA/EIA-568-C.2: T568A & T568B;ISO/IEC 11801
2. 8-position conductor/pair assignment
3. T568B:1-2/3-6/4-5/7-8
4. T568A:3-6/1-2/4-5/7-8

Cordage:

1. Constructor: 4 pairs, 7 strands, 24/26 AWG, UTP
2. Cable Type:UTP Cat.5e Patch Cable
3. Outer Cable Diameter: 5.5mm ± 0.2 mm
4. Pair Identification: Pair1= Blue/White Pair2= Orange/White
5. Pair 3= Green/White Pair4= Brown/White
6. Outer Jacket: PVC/LSZH Jacket

Mechanical:

1. Retention: 50 N (11 lbf) for 60±5 s
2. Mating cycle life: min 750 cycles
3. Tensile strength: ≥ 20 N per wire
4. Installation Temperature: 0°C to +60°C
5. Operating temperature: -20°C to +60°C
6. Minimum bend radius: 4 outer cable diameters
