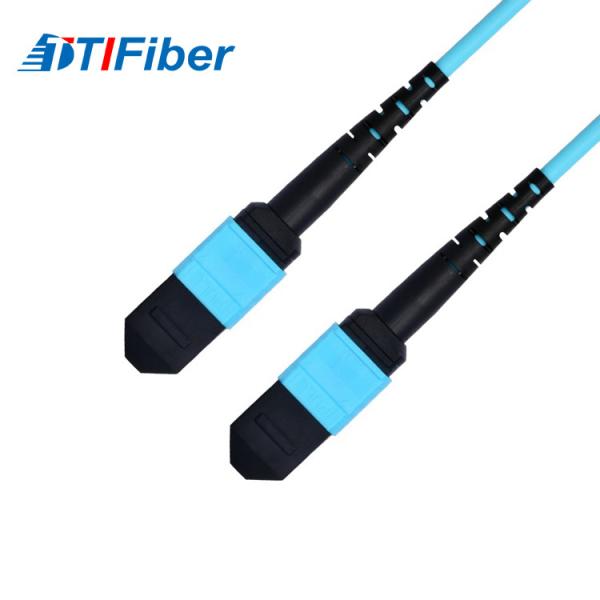

OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable

TTI Fiber Communication Tech. Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable from wholesalers

    Buy cheap OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable from wholesalers
    • Buy cheap OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable from wholesalers
    • Buy cheap OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable from wholesalers

    OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable

    Ask Lasest Price
    Brand Name : TTI
    Model Number : OM3
    Certification : ISO UL CE RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, , paypal
    Supply Ability : 10000 pieces perday
    Delivery Time : 2-5 day
    • Product Details
    • Company Profile

    OM3 Aqua 50/125μm Fiber optic patch cord SM MM SX DX fiber optical cable

    Overview
    Quick Details

    Place of Origin: Guangdong, China (Mainland)

    Brand Name: OEM

    Model Number: Fiber Optic Patch Cord

    Cable Diam: 0.9mm / 2mm / 3mm

    fiber type: OM3 or others

    Jacket: PVC / LSZH

    Connector type: MPO/MTP/SC/ST/FC/LC/MTRJ

    Insertion loss: <0.3dB

    Return loss: ≥ 55 dB

    Length: 1m / 2m / 3m or customized

    OEM: Support

    Color: aqua or Customized


    Packaging & Delivery

    Packaging Details

    1pc per bag, oem packing , or customized


    Delivery Time

    3-7 days


    Product Description

    Fiber optic patch cords are used to jump from the device to the fiber optic cabling link. There is a thick protective layer, generally used in the optical terminal and the terminal box between the connection, used in optical fiber communication systems, fiber access network, optical fiber data transmission and LAN and other areas.RE-1999 requirements.


    Features
    • High fiber density (maximum 24 fibers for Multimode)
    • Cross Connection : AB/BA
    • Paralled Connection : AB/AB
    • Small volume, easy management
    • Can customize connection method as QSFP requirements
    Area of application
    • Telecom system
    • Cabling system
    • High Density optical laser
    • QSFP devices

    Specifications


    Item
    SMMM
    Insertion loss
    <0.3dB <0.7 dB<0.5dB <0.7 dB
    Return loss
    >60dB>35dB
    Fiber diameter
    9/125um50/125um,62.5/125um,OM3
    Insert- pull test
    500times<0.5 dB
    Operation temperature
    -40℃~+80℃

    Ordering Information


    • Supply SM,MM, Simplex connector
    • Supply 4,8,12,24 cores connector
    • MPO male pin available ( SM or MM )
    • Can customize MT-MT Patch Cord as customer requirementsWhy choose us

    l Any inquiries or questions will be replied within 24 hours.

    l Professional manufacture with 10 years production experience. Welcome to visit our website:www.ttifiber.com

    l China factory OEM/ODM available

    l High quality, reasonable& competitive price, fast lead time

    l After-sale service: All the products will have been 100% full test before shipping, also with 2 years warranty.

    l Fast delivery: samples order within 1 day, and 3-7 days for bulk orders.

    l Payment: You can pay us via: T/T, , Paypal, or others.

    l Shipping: By express: UPS,DHL,FexEx,TNT,EMS…;By air; By sea; Or you also can choose your own shipping forwarder.
